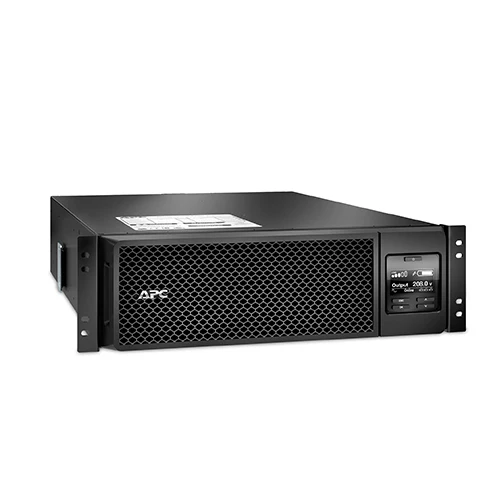

Description
– Avoids costly power problems by keeping your IT equipment and data protected and available.
Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.
– Low operating and maintenance costs with proven reliability and intelligent battery management.
Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.
– Save time with easy and convenient remote accessibility.
Network manageable via serial, USB or optional Ethernet. Includes Powerchute® Network Shutdown Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.
– Peace of mind that comes with full equipment compatibility and reliability of a leader
Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
| Power | |
|---|---|
| Output power capacity | 4.25 kVA |
| Output power | 4250 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 275 V |
| Output operation voltage (min) | 208 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 480 J |
| Output frequency | 50/60 Hz |
| Input current Total Harmonic Distortion (THD) | 2% |
| Crest factor | 3:1 |
| Input frequency | 40 – 70 Hz |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Surge protection | Yes |
| Waveform | Sine |
| Auto-restart | Yes |
| Noise level | 55 dB |
| LED indicators | Alarm, Status |
| Audible alarm(s) | Yes |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 4.25 kVA |
| Web-based management | Yes |
| Output power | 4250 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 275 V |
| Output operation voltage (min) | 208 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 480 J |
| Surge protection | Yes |
| Waveform | Sine |
| Output frequency | 50/60 Hz |
| Input current Total Harmonic Distortion (THD) | 2% |
| Crest factor | 3:1 |
| Auto-restart | Yes |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Input frequency | 40 – 70 Hz |
| Heat dissipation | 1047 BTU/h |
| Ports & interfaces | |
| AC outlets quantity | 4 AC outlet(s) |
| AC outlet types | NEMA L6-20R, NEMA L6-30R |
| Power plug | NEMA L6-30P |
| Emergency Power Off (EPO) connector | Yes |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| SmartSlot | Yes |
| Cabling technology | 10/100Base-T |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Battery | |
| Battery life (max) | 5 year(s) |
| Battery capacity | 840 VAh |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 1.5 h |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Battery voltage | 192 V |
| Automatic battery test | Yes |
| Replacement battery cartridge | APCRBC140 |
| Design | |
| Form factor | Rackmount/Tower |
| Rack capacity | 3U |
| Product colour | Black |
| International Protection (IP) code | IP20 |
| Certification | CSA C22.2 No.107.3-05, FCC Part 15 Class A, NOM, OSHPD, UL 1778 |
| LED indicators | Alarm, Status |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -15 – 45 °C |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating altitude | 0 – 118110.2″ (0 – 3000 m) |
| Non-operating altitude | 0 – 590551.2″ (0 – 15000 m) |
| Technical details | |
| Output frequency | 50/60 Hz |
| Sustainability certificates | ENERGY STAR |
| Warranty period | 3 year(s) |
| Compliance certificates | RoHS |
| Certificates | |
| Certification | CSA C22.2 No.107.3-05, FCC Part 15 Class A, NOM, OSHPD, UL 1778 |
| Compliance certificates | RoHS |
| Management features | |
| Web-based management | Yes |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Width | 17″ (432 mm) |
| Depth | 28.3″ (719 mm) |
| Height | 5.12″ (130 mm) |
| Weight | 123 lbs (55.8 kg) |
| Package width | 24″ (610 mm) |
| Package depth | 37.8″ (960 mm) |
| Package height | 13″ (330 mm) |
| Package weight | 149.9 lbs (68 kg) |
| Packaging data | |
| Package width | 24″ (610 mm) |
| Package depth | 37.8″ (960 mm) |
| Package height | 13″ (330 mm) |
| Package weight | 149.9 lbs (68 kg) |
| Logistics data | |
| Products per pallet | 6 pc(s) |
| Warranty period | 3 year(s) |
